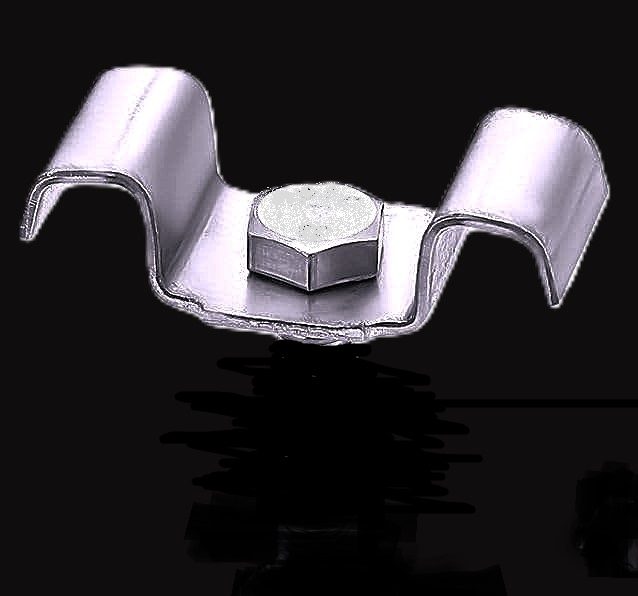

1″ F-10 Grating Clip — 316 Stainless Steel
F-10 style grating fastener in 316 grade stainless steel for 1″ grating. Corrosion-resistant, no welding required.
Description
316 stainless steel G clip grating fastener for 1″ deep grating. The same no-hot-work fixing as our galvanized clip, in 316 stainless for marine, coastal, chemical and food-industry environments where a galvanized coating would not last. Supplied in boxes of 50 sets.
Specifications
| Item number | 0-270 |
| For grating depth | 1″ |
| Material type | 316 stainless steel |
| Material thickness | 3 mm (1/8″, .125) and 2 mm (14 GA) |
| Material specification | ASTM A240 / A240M22, ASME SA-240 / SA-240M 2021 Sec II Part A, IS 6911:2017 AMD 3 |
| Finish | Mill finish 2B prime |
| Weight | 0.89 g (3.1 oz) per clip |
| Kit components | G part, top washer, hex screw |
| Screw | Metric M6-1, 40 mm long (1-1/2″), 5 mm (1/4″) thickness |
| Tools | Socket, flat key or box key wrench, CRV 10 |
| Pack size | 50 sets of clip, washer and hex screw |
| Coverage | 1 clip per 2-1/2 sq ft of grating |
Key features
- 316 grade throughout. Clip, washer and screw in stainless, so there is no galvanic pair left in the fixing.
- No drilling, tapping, cutting or welding. Fixes platforms to structures without hot work on site.
- For aggressive environments. Marine, coastal, chemical, wastewater and food industry duty.
- Standard tooling. Installed with a CRV 10 socket, flat key or box key wrench.
- Supplied to USA and international standards. ASTM, ASME and IS specifications quoted above.
Applications
- Construction
- Oil, gas and petroleum refineries
- Bridge structures
- Walkways and steel structure platforms
- Commercial flooring
- Marine and coastal installations
Our offerings
- Product excellence
- Timely shipping
- Wide network
- Importer and exporter
- Service provider
- Manufacturer and supplier
Contact us for your custom project needs. We offer design and technical assistance for your ideas — send us your project information, sizes and finish and we will price it, confirm the lead time and quote freight to your site.
Additional information
| Fits Grating Depth | 1" |
|---|---|
| Style | F-10 |
| Material | 316 stainless steel |
| Installation | Bolt-on, no welding |
| Material Thickness | 1/8" (3 mm) and 14 GA (2 mm) |
| Specification | ASTM A240/A240M-22, ASME SA-240, IS 6911:2017 |
| Finish | Mill finish 2B prime |
| Unit Weight | 3.1 oz approx. |
| Screw | Metric M6-1, 40 mm (1-1/2") long, 5 mm (1/4") thick |
| Tools | CRV 10 socket, flat or box wrench |
| Pack | 50 sets — G clip, top washer, hex screw |
| Coverage | 1 clip per 2-1/2 sq ft of grating |
