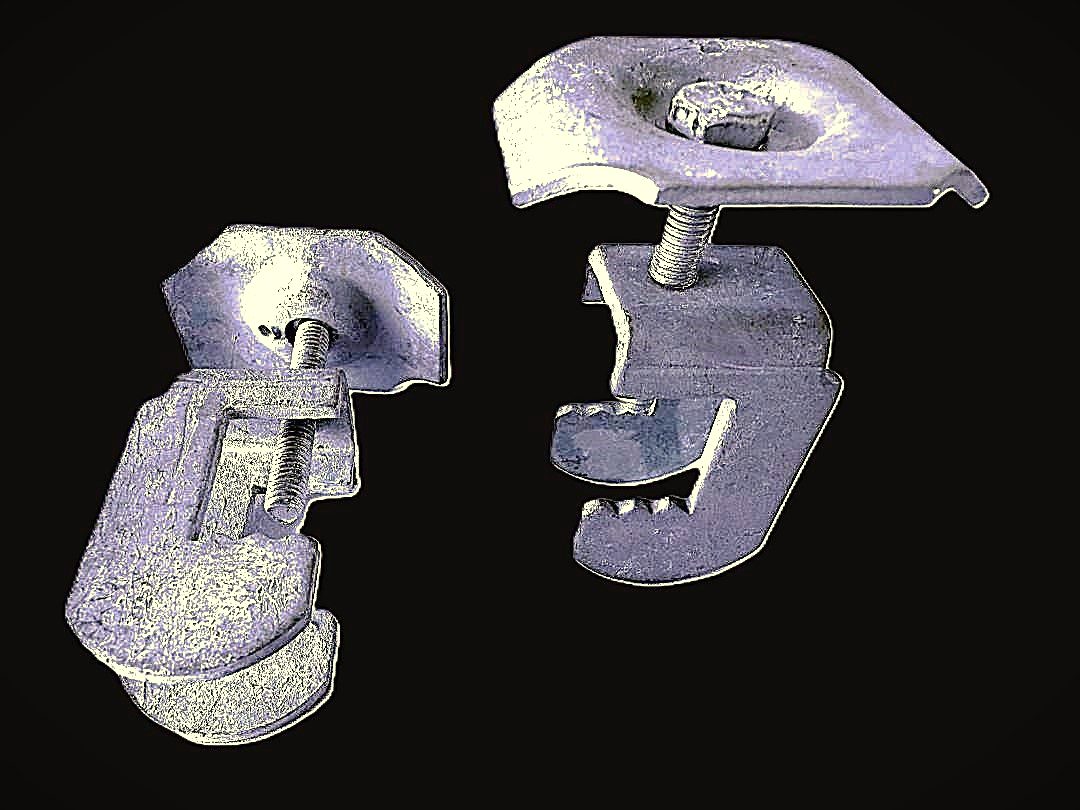

1-1/2″ G Clip Grating Fastener — Galvanized
Galvanized carbon steel G clip grating fastener for 1-1/2″ grating.
Description
Galvanized carbon steel G clip grating fastener for 1-1/2″ deep grating. A complete kit for fixing grating panels down to the supporting structure — no drilling, tapping, cutting or welding on site. Supplied in boxes of 50 sets.
Specifications
| Item number | 0-260 |
| For grating depth | 1-1/2″ |
| Material type | HR sheet carbon steel |
| Material thickness | 3 mm (1/8″, .125) and 2 mm (14 GA) |
| Material specification | ASTM B695, IS 2062:2011 E250A, HT04 |
| Finish | Hot-dip galvanized |
| Compliance | Meets or exceeds ASTM B-695 |
| Weight | 0.93 g (3.2 oz) per clip |
| Kit components | G part, top washer, hex head cap screw |
| Screw | Metric M6-1, 40 mm long (1-1/2″), 5 mm (1/4″) thickness |
| Tools | Socket, flat key or box key wrench, CRV 10 |
| Pack size | 50 sets of clip, washer and hex screw |
| Coverage | 1 clip per 2-1/2 sq ft of grating |
Key features
- No drilling, tapping, cutting or welding. The clip grips the bearing bar and the supporting steel, so the panel is fixed without hot work.
- Three-part kit. G part, top washer and hex head cap screw supplied together — nothing to source separately.
- Standard tooling. Installed with a CRV 10 socket, flat key or box key wrench.
- Hot-dip galvanized. Meets or exceeds ASTM B-695 for corrosion resistance.
- Removable. Panels can be lifted for access and re-fixed with the same clips.
Applications
- Construction industries
- Oil and gas
- Petroleum refineries
- Bridge structures
- Walkway steel structures
- Commercial flooring
Our commitment
- Product excellence
- Timely shipping
- Wide network
- Importer and exporter
- Service provider
- Manufacturer and supplier
Contact us for your custom project needs. We offer design and technical assistance for your ideas — send us your project information, sizes and finish and we will price it, confirm the lead time and quote freight to your site.
Additional information
| Fits Grating Depth | 1-1/2" |
|---|---|
| Style | G Clip |
| Material | Galvanized carbon steel |
| Installation | Bolt-on, no welding |
| Material Thickness | 1/8" (3 mm) and 14 GA (2 mm) |
| Specification | ASTM B-695, IS 2062:2011 E250A |
| Finish | Hot-dip galvanized |
| Unit Weight | 3.2 oz approx. |
| Screw | Metric M6-1, 40 mm (1-1/2") long, 5 mm (1/4") thick |
| Tools | CRV 10 socket, flat or box wrench |
| Pack | 50 sets — G clip, top washer, hex head cap screw |
| Coverage | 1 clip per 2-1/2 sq ft of grating |
